A2212 BLDC Motor is a 3-phase out-runner type popular brushless DC motor commonly used in Drones and other multirotor applications. The motor is rated for 1000KV and has an efficiency of 80%. The A2212 motor requires an ESC (Electronic speed controller) to control its speed. The motor can be easily be controlled with ourand when coupled with our 1045 Propeller Blades it can provide thrust up to 800gm. Four of these A2212 Motors can be easily mounted on the to provide a total thrust of 3.2kgs enabling you to build powerful drones.
Specifications of A2212 1000kV BLDC Motor:
- ESC Specifications: 18A (min) / 30A (recommended)
- No Load Current: 500mA @10V
- Nominal Current: 12A/60s
- No. of Cells: 2S or 3S Li-Po
- Thrust with 3S: 800gm (with 1045 propeller)
Package Contains:

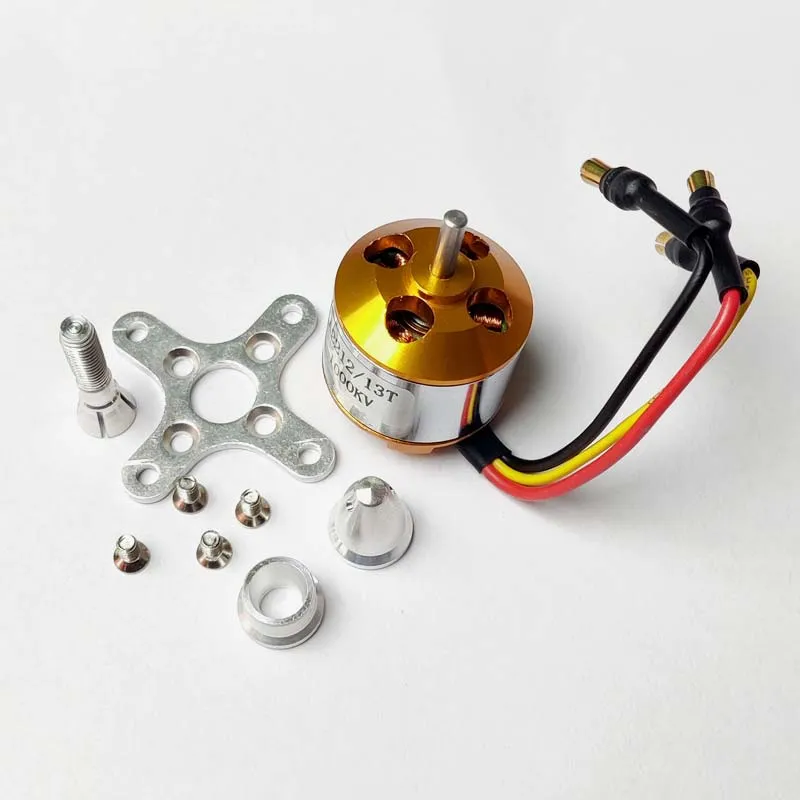

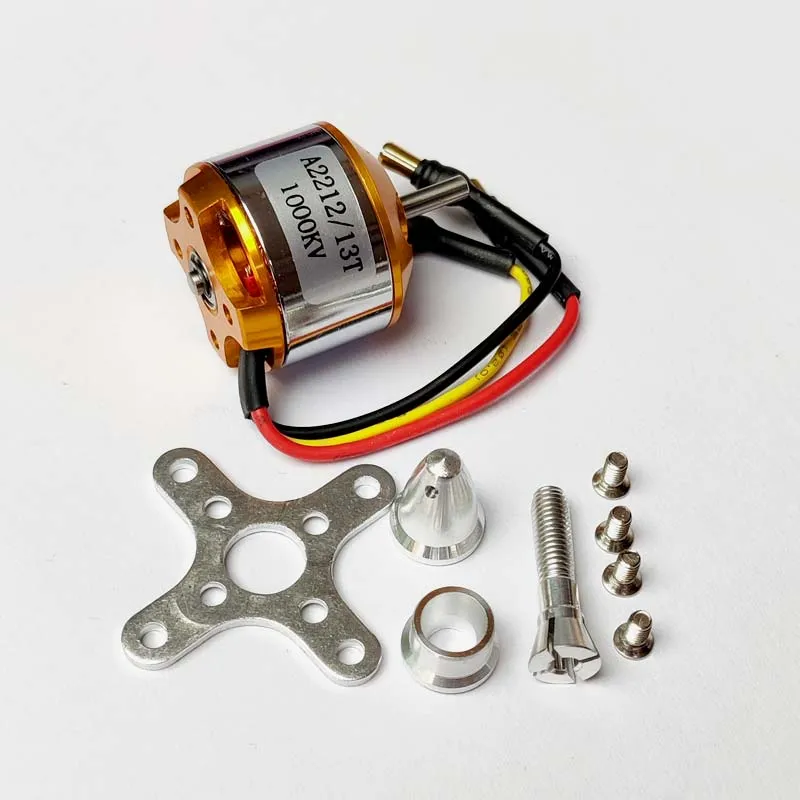

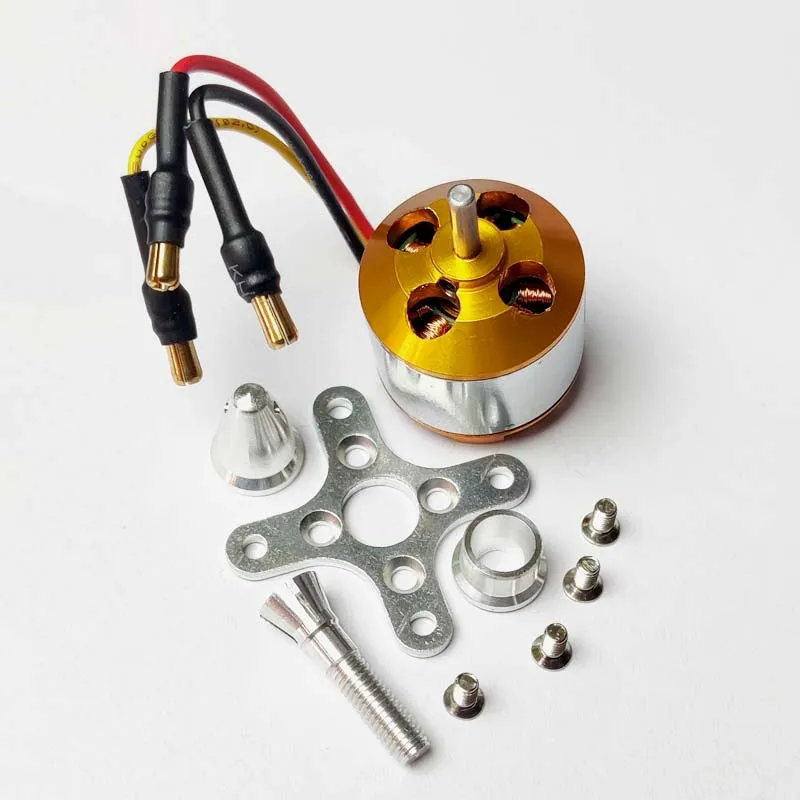

1 x A2212 10T/13T 1400kV BLDC Motor
