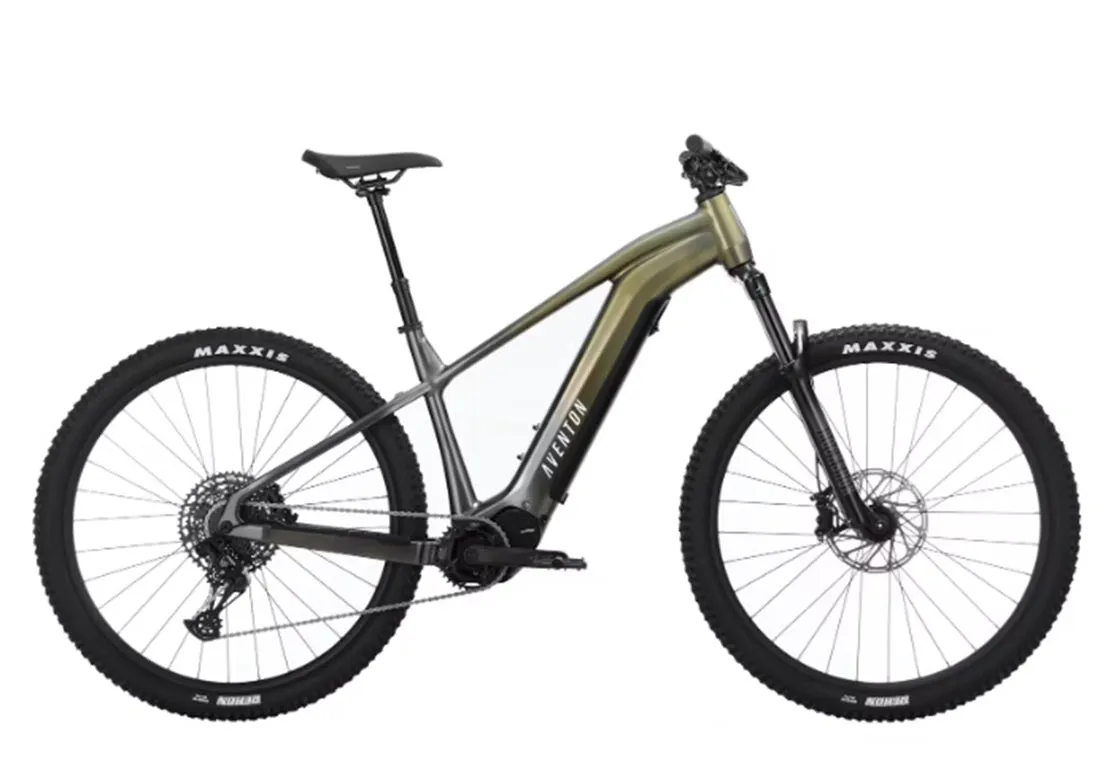

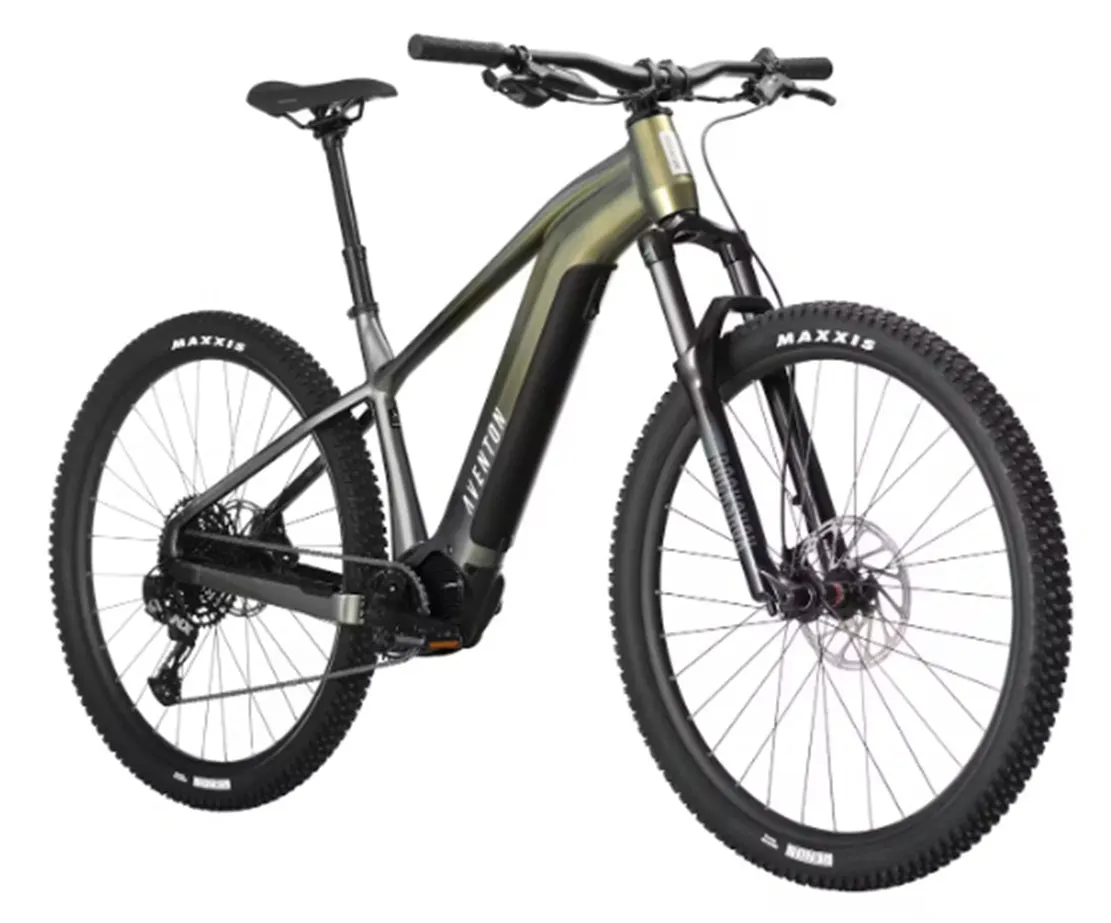

Name: Aventon Ramblas Electric Mountain Bike
SKU: 50315

Carve out the uncommon route with the Aventon Ramblas Electric Mountain Bike, Aventon’s first-ever electric mountain bike (eMTB) with an intelligent mid-drive motor. Rugged and reliable, the Aventon Ramblas is a hardtail, all-terrain ebike that offers the ultimate comfort on mountain trails or city streets. Engage the three pedal assist levels of the Aventon Ramblas with a top speed of 20 mph, and range of up to 80 miles to roam, ramble, and revel in the more dynamic side of the ride. With Ramblas, it’s mountain time, all the time.

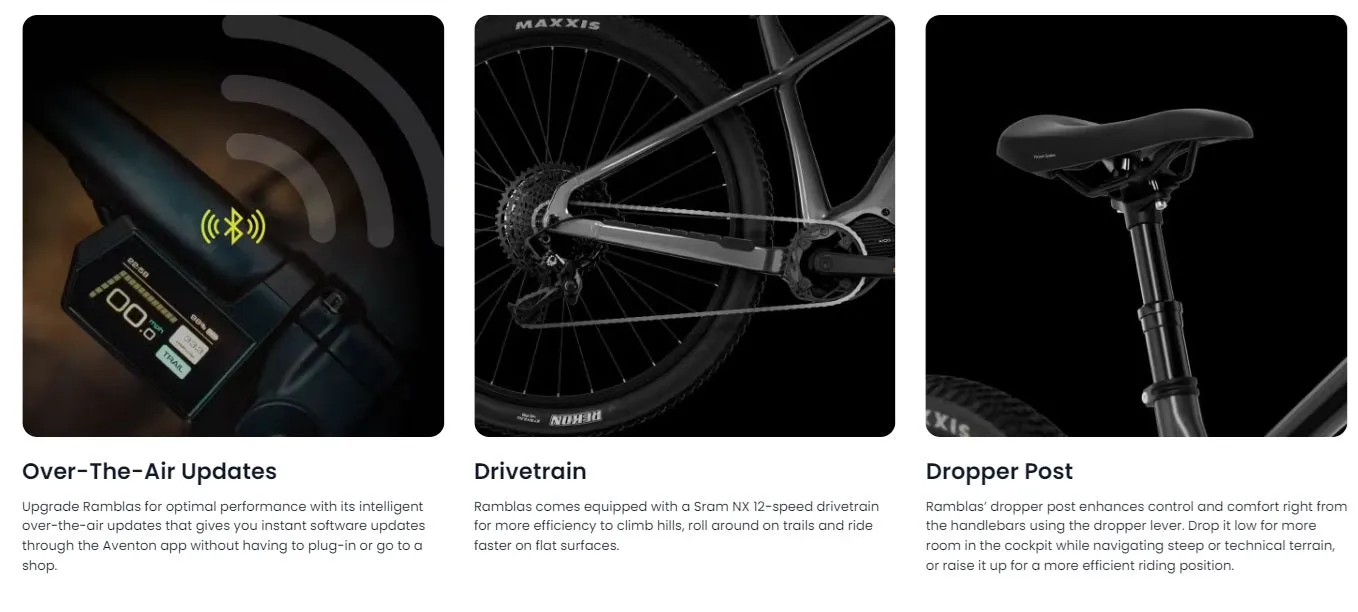

Aventon’s Ramblas comes equipped with a first-ever mid-drive motor for the Aventon line-up. The mid-drive is Aventon-designed offering riders personalized tuning capabilities through the Aventon app for an amplified natural riding experience. Adjust the three PAS levels to fine-tune its overall rideability.

Specifications

Model - Ramblas eMTB
Weight - 54lbs, size large, w/o pedals
Total Weight Limit - 300 lbs
Ideal Use - Mountain Biking, Urban Riding
Speed - 20 MPH
Range - Up to 80 miles

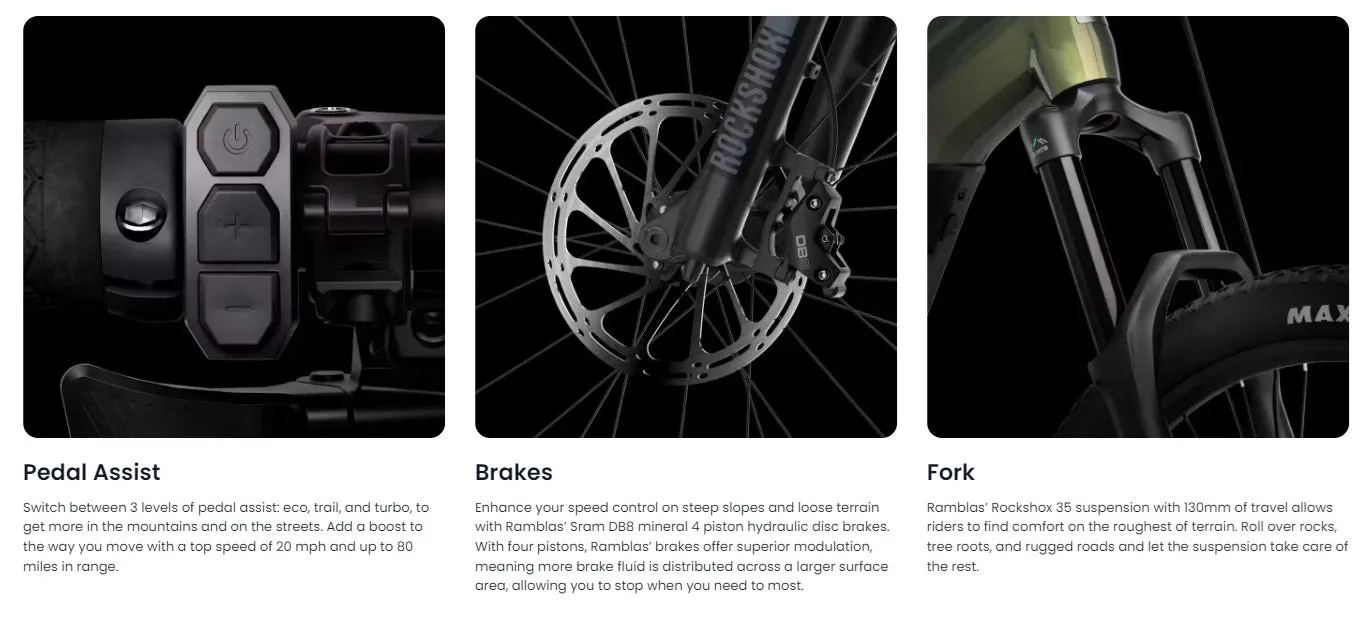

Pedal Assist - 3 Levels

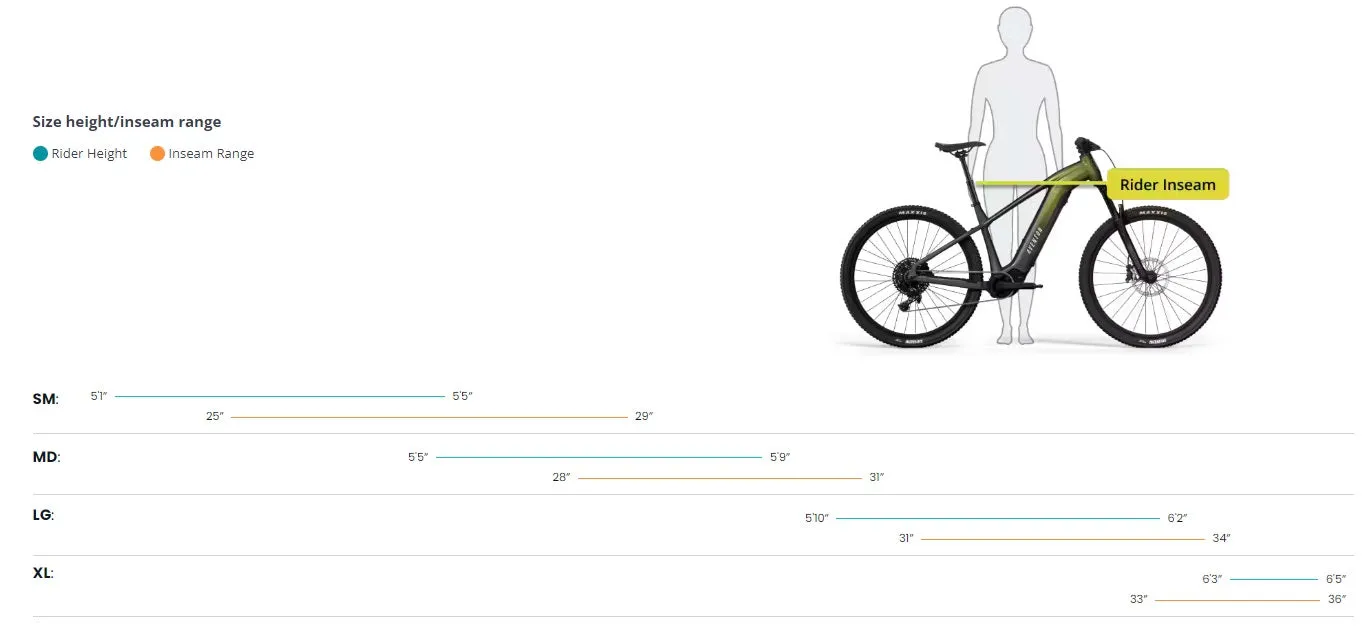

Rider Height - 5'1" - 6'5"
Folding - No

Frameset

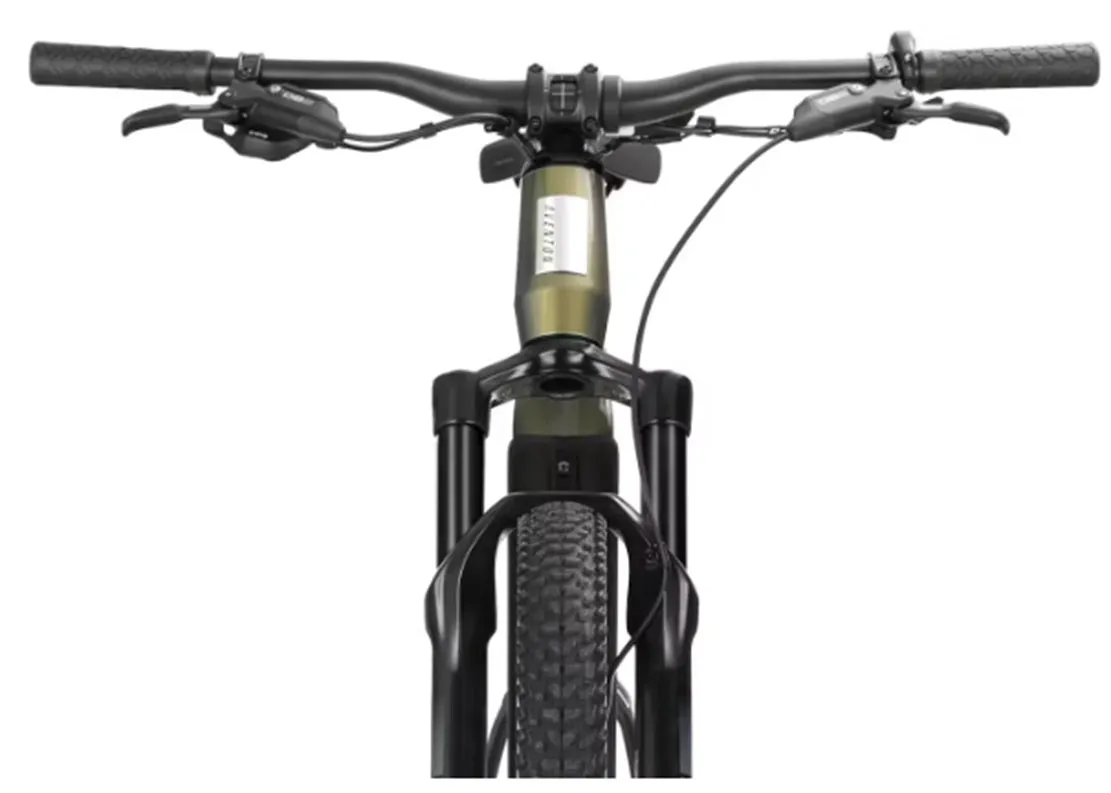

Fork - BOREALIS: RockShox 35 Silver R 130mm travel. Coil, 44mm offset, 15x110 QR axle, 1.5" tapered steerer tube AURORA: Rockshox Psylo Silver R, 35mm Stanchions, coil, 44mm offset, 15x110mm BOOST, 1.5"tapered steerer tube, Rebound adjust
Frame - 6061 Single-Butted Aluminum Alloy
Frame Style - Step-Over

Wheelset

Hubs - 15x110 32H Front, 12x148 32H Rear
Rim - Double Wall Aluminum 32h Front & Rear
Spokes - Black Stainless 13 Gauge
Tires - S Maxxis Rekon 27.5x2.4, M/L/XL Maxxis Rekon 29x2.4
Tubes - Butyl Rubber, Presta Valve

Ebike System

Battery - Aventon 708 WH. 36V LG 21700 cells.

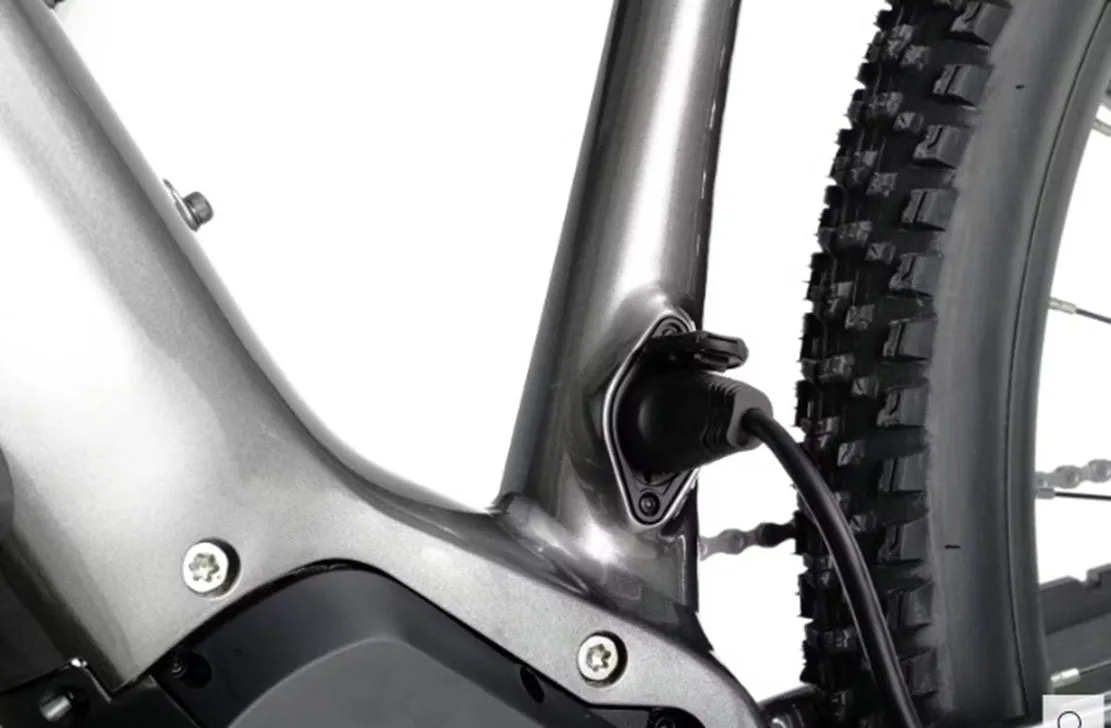

Charger - 42V 4A charger

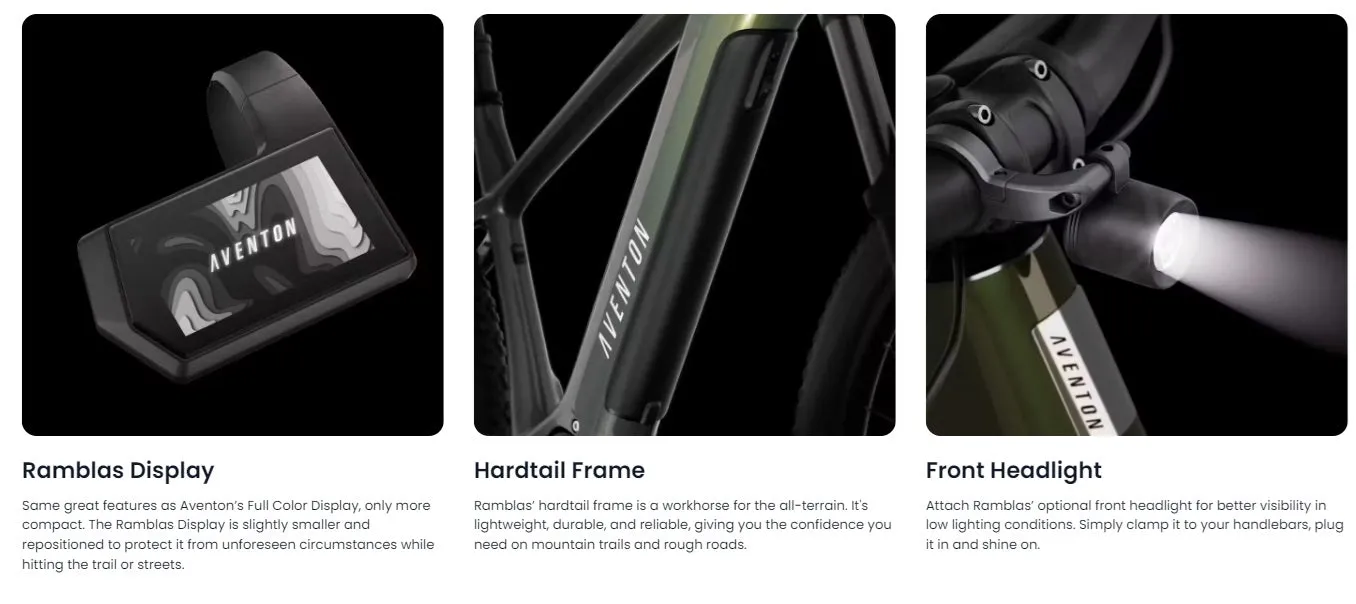

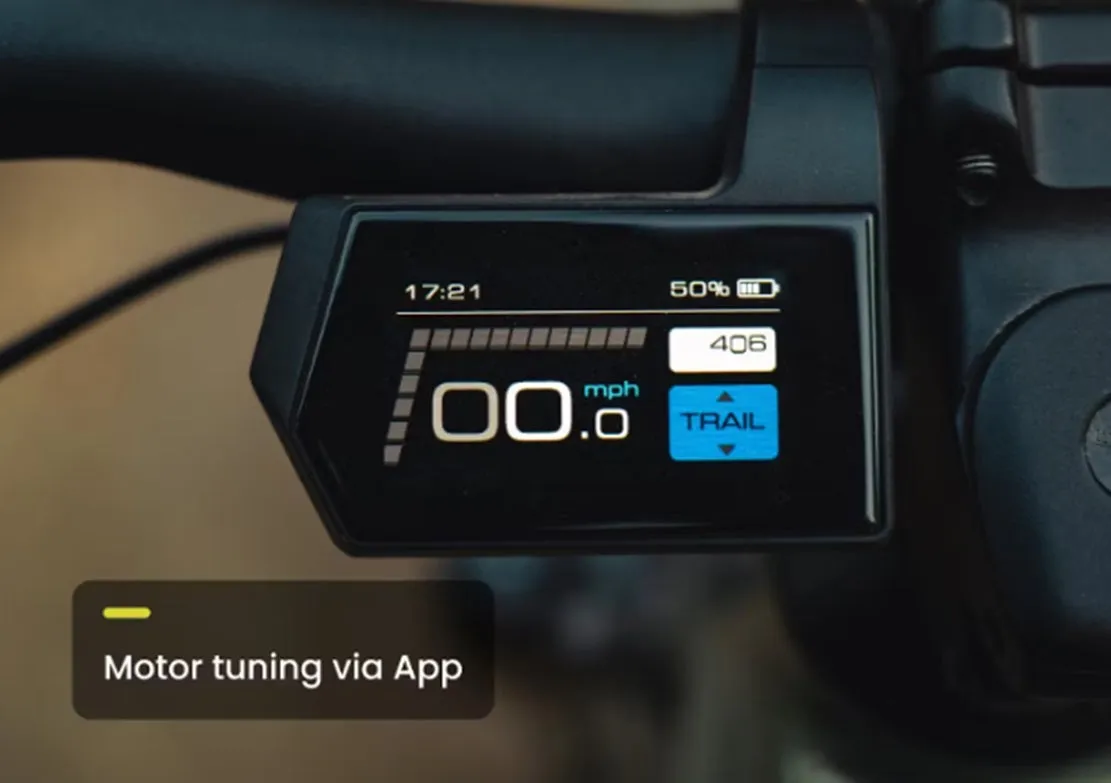

Display - LCD Smart "Easy Read"

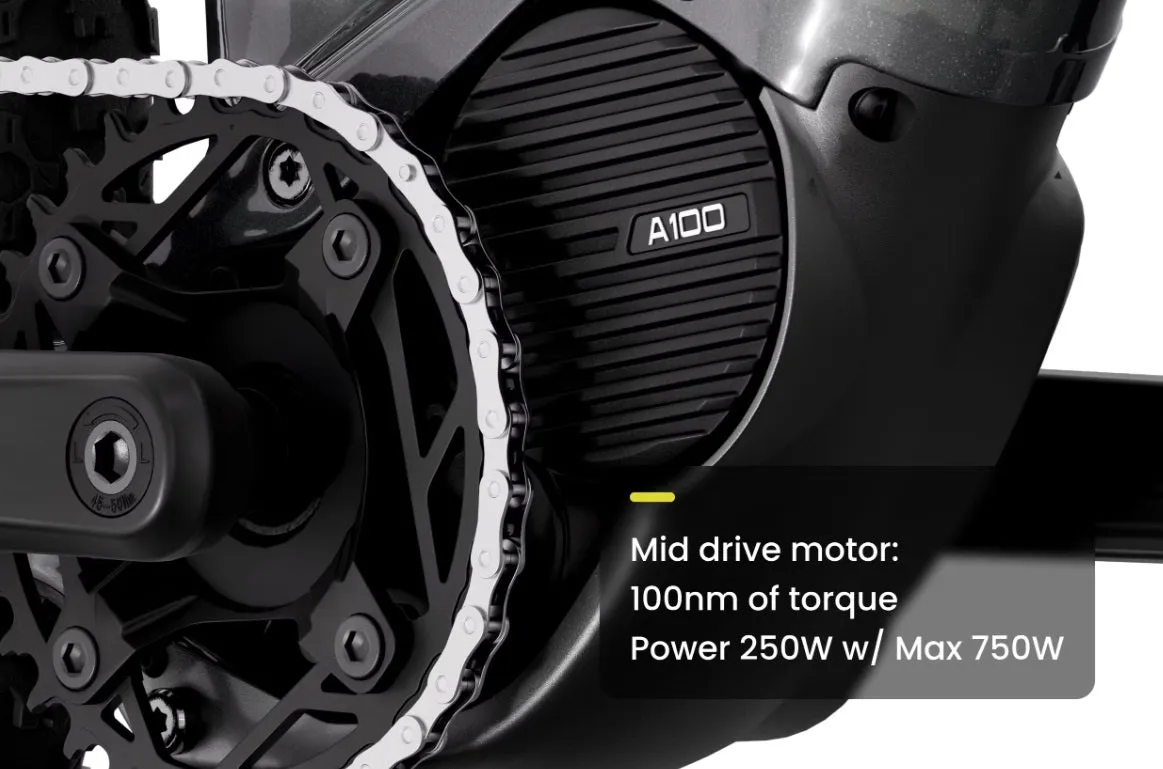

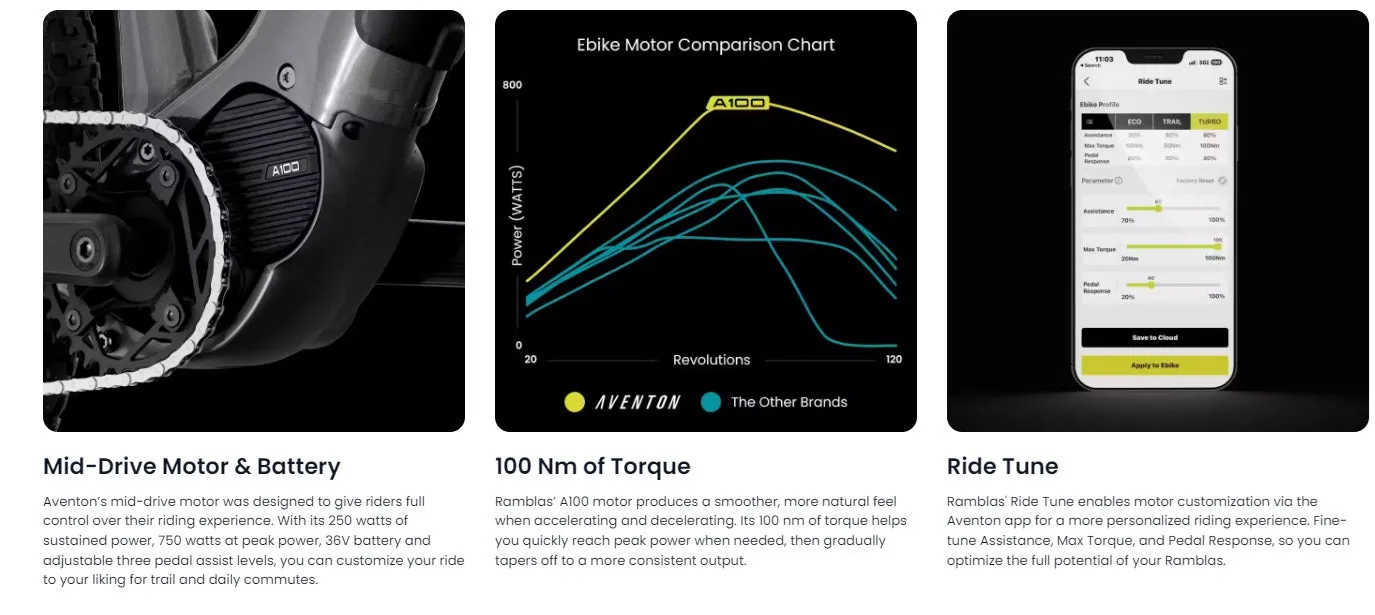

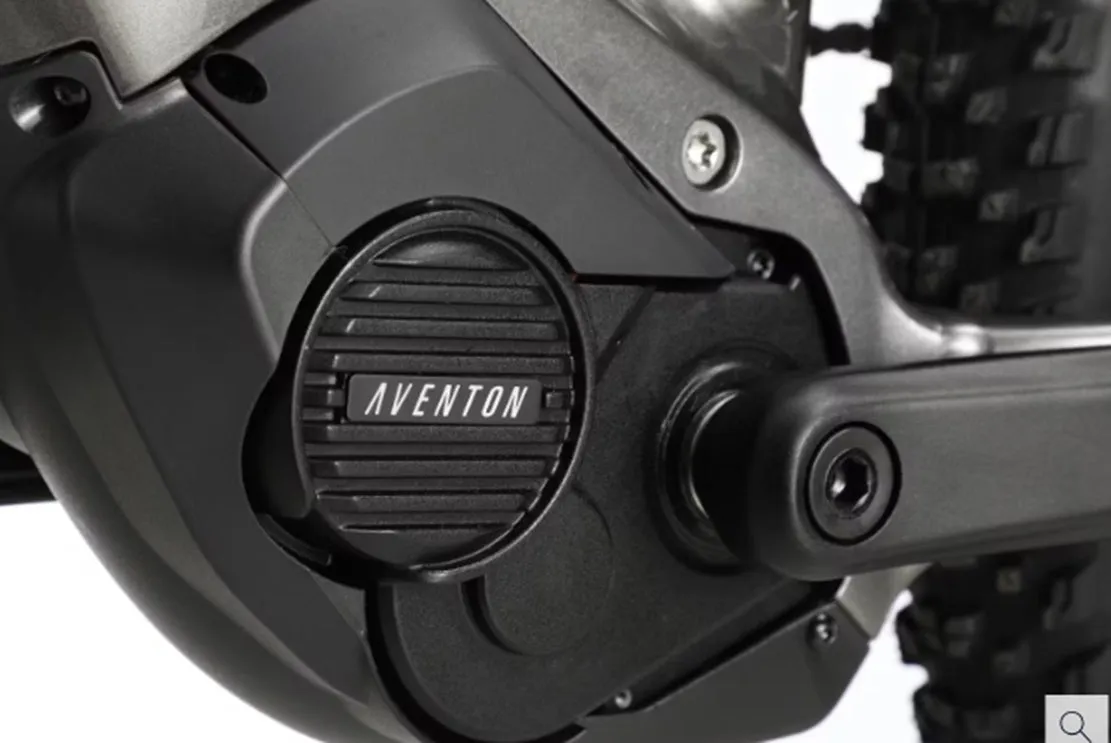

Motor - Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating

Brakes

Rear Brake Rotor - Sram 180mm 6 bolt
Front Brake Rotor - Sram 200mm 6 bolt
Brakes - Sram DB8 mineral 4 piston hydraulic disc brakes

Drivetrain

Rear Derailleur - Sram NX Eagle 1x12
Pedals - 9/16" Alloy Platform
Chainring - Sram Nx 34t

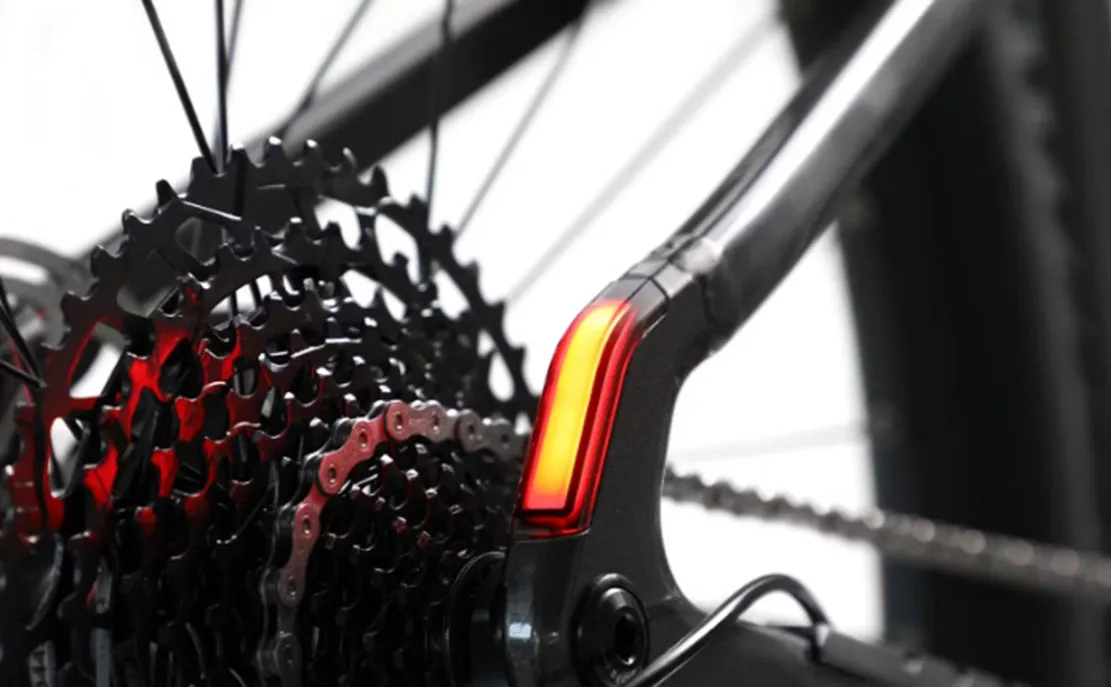

Cassette - Sram SX Eagle 1x12 11-50t
Shift Lever - Sram NX Eagle 1x12 single click

Cockpit

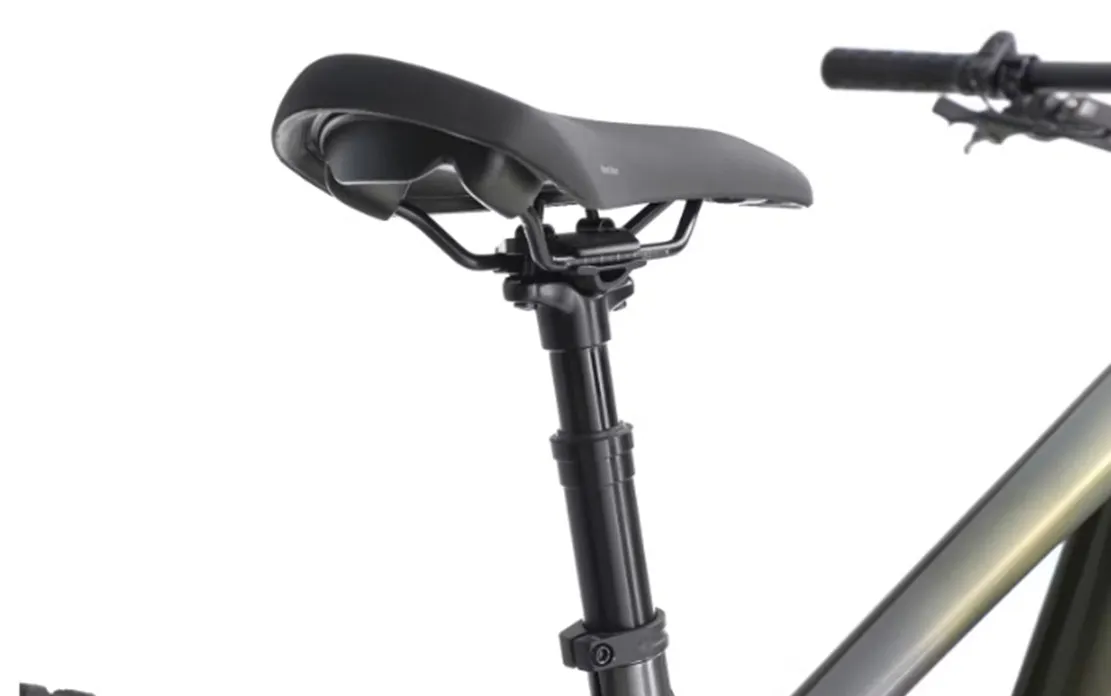

Seatpost - 150mm travel for size M-XL. 125mm travel for size S. 31.6mm ø. 395mm length

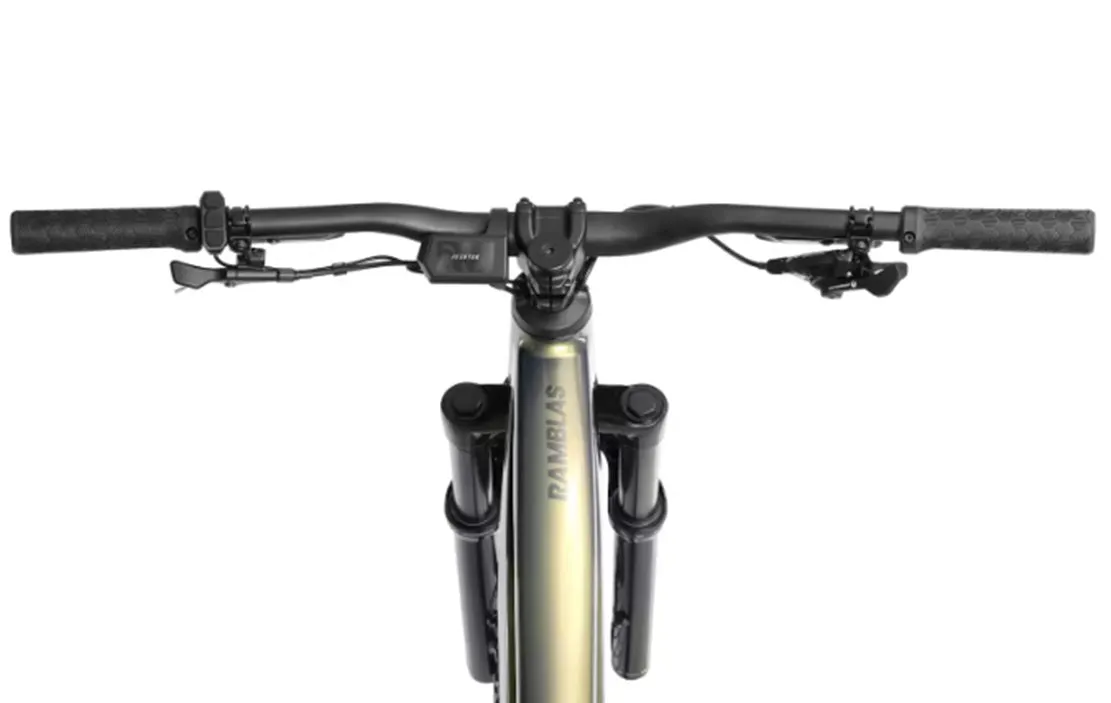

Handlebars - 35mm, 9° rise, 720mm width for size S, 760mm width for size M-XL

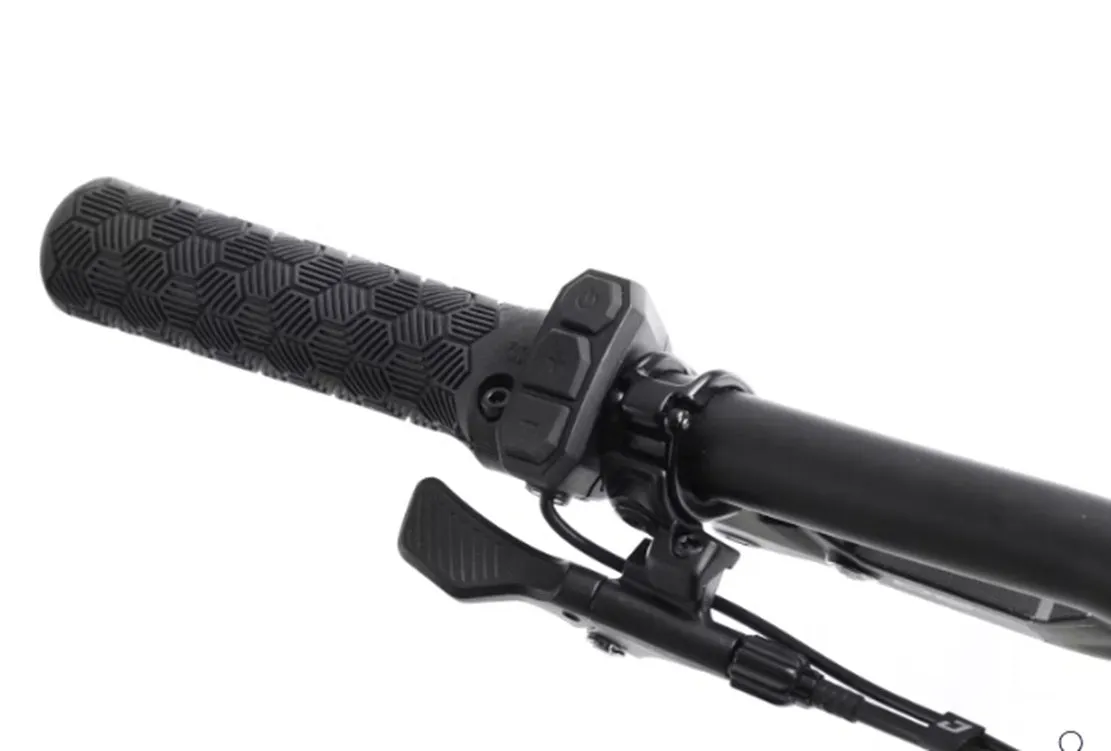

Grips - Lock on
Stem - 35mm Ø, 40mm length
Seat Clamp - Aventon 34.9mm
