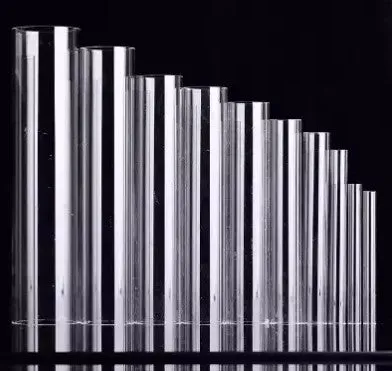

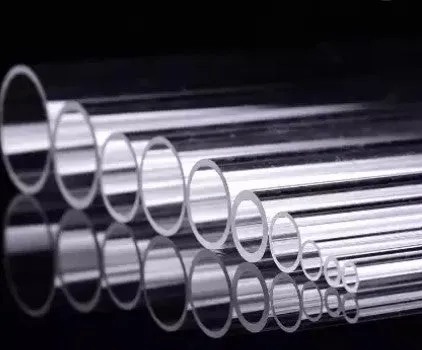

Quartz Tube for Tube furnace
Essential details
- Place of Origin: China
- Brand Name: Chengyi
- Model Number: EQ-QZTube-50GE-1800
- Type: Clear Quartz Pipe
- Color: clear
- Application: use for tube furnace
- Surface Treatment: Grinded
-
Quartz tube
1.OD: 50mm ±0.5mm
2. ID: 44mm ±0.5mm
3.Length: 1800mm4.Max. working temperature 1200C
Item Weight
0.94lbs
Application Notes
1.Vacuum pressures may only be safely used up to 1000°C
2.Quartz tubes are designed for using under vacuum and Max.positive pressure must be < 0.2 bars / 3 psi / 0.02 MPa
3.For using the tube flange kit at high temperature >500C, the quartz thermal radiation block shall be used.4.It use for Chengyi three zone tube furnace
